Expanding on a proven format, the Explorer Collection benefits from advanced technologies that our engineers have utilized in numerous loudspeaker designs. These loudspeakers are complete updates to our award-winning Director & Composer Collections. Designed for saltwater and sea spray from the beginning, these speakers will hold up in wet rooms, water-front patios, and of course luxury sea-craft.
With an IPX6 rating, all stainless steel hardware, extra gaskets, and water-sealed crossovers the entire Explorer Collection is at the top of the class. These features ensure that high-performance that is safe from the corrosion and internal damage commonly posed by exposure to ocean water and rainstorms--backed by a lifetime warranty.
Moving the maximum amount of air is the key to great bass. The woofer cone is made of injection-molded graphite which offers low mass while consistently holding the driver‘s shape.
The ability to point or "direct" the sound toward a specific area in the room is critical when the speakers are mounted in the ceiling. The Explorer D65EX features an assembly that can be adjusted to focus the sound from both the woofer and tweeter toward the listening area regardless of the speaker‘s position in the ceiling. This allows for the speakers to be used in many applications. One example is a home theater where the soundstage, relative to the screen, is crucial. The seating area can be off axis and still remain in the "sweet-spot."
While in motion, frequencies between 700-1,400 Hz typically run up the cone of a woofer and are reflected back and forth from the center of the driver. This creates unwanted harmonic distortion. The X-Wave surround found in Origin woofers absorbs these frequencies reducing distortion and maintaining driver stability. This design also maximizes cone area by reducing the width of the surround.
As the driver travels to the limits of its excursion, the suspension, made up of the spider and the surround, becomes more rigid, exerting more control on the movement of the cone. The result is increased, clean power output throughout the driver‘s frequency range.
Utilizing the latest techniques and materials in plastic fabrication, Origin is able to create basket designs with superior stability and acoustic neutrality. These baskets combine with the driver suspension to increase linearity and improve overall performance.
It is important when installing a loudspeaker in the ceiling that it be stable and secure, restricting the vibration of the assembly and limiting transfer of energy into the wall. The revolutionary Tool-Less Installation (Patent #9591390) spreads the weight of the speaker over a larger area than typical mounting systems accomplishing this result with minimal effort. Spring-loaded clips also create more uniform pressure against the drywall eliminating any warping or distortion of the speaker baffle.
A switch on the speaker baffle, behind the grille, allows the installer to fine-tune the speaker‘s performance through treble adjustment. This is essential as the speaker‘s proximity to adjacent walls and soffits can dramatically affect frequency response.

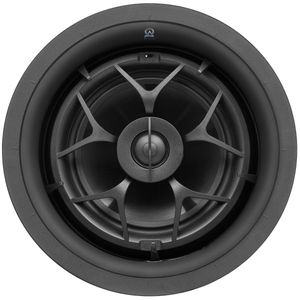

An IP6X rated, micro perforated grille with a micro bezel covers the entire speaker assembly and leaves a discreet finished appearance. Its magnetic attachment makes removing or replacing the grille fast and easy.
|Tweeter Diameter||1" (25mm)|
|Woofer Diameter||6.5" (165mm)|
|Recommended Amplifier Power||25 watts - 140 watts|
|Sensitivity||91dB +/- 3dB|
|Depth||5 1/2" (140mm)|
|Cutout Diameter||8.75" (222mm)|
|Nominal Impedance||6 ohm minimum|
|Mounting Depth||4.57" (116mm)|
|Cut Out Width||8.75|
|Cut Out Height||8.75|
|Color Finish Name||Black|
|Speaker Type||In-Ceiling Speakers|
