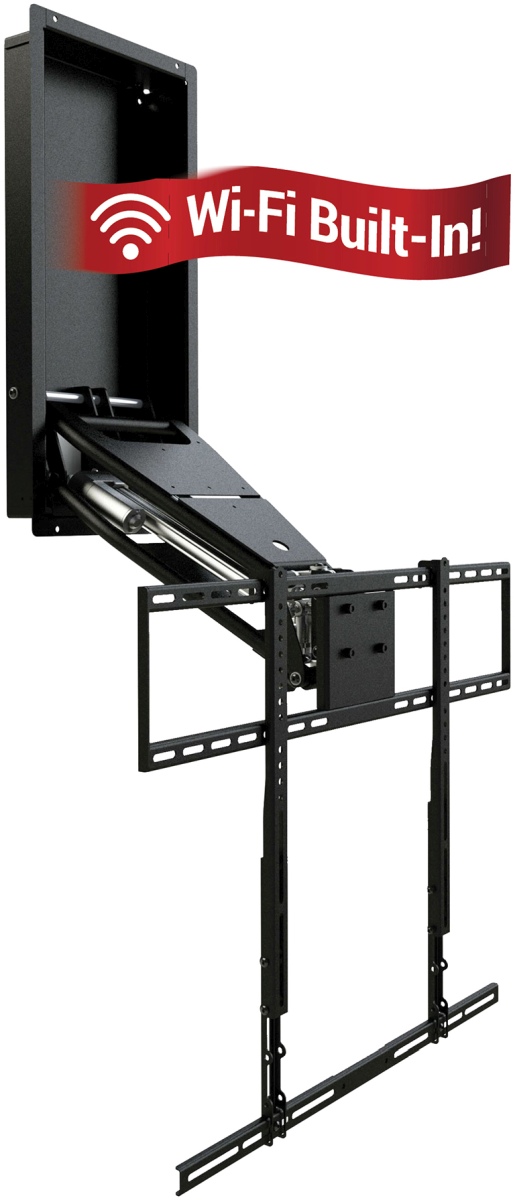

MantelMount® MM860 Pro Series Pull Down TV Mount
MantelMount® MM860 Pro Series Pull Down TV Mount 0
MantelMount® MM860 Pro Series Pull Down TV Mount 1

MantelMount® MM860 Pro Series Pull Down TV Mount

Model #: MM860v2
At a Glance
The award-winning MantelMountPro MM860 has always been the most robust automated Smart Home Ready TV Mount solution – and now it’s even better! The new MM860V2 features built-in Wi-Fi for those times when hardwired Ethernet is not available.

Get to know this product.

Also, we’ve added enhanced post installation leveling features that make it easier than ever to make adjustments to accommodate differences in weight distribution among various televisions. The MM860V2 automatically lowers and swivels a TV into the perfect position for the best picture quality and ultimate viewing experience. The MM860V2 is the ideal solution for upscale installations and is a superior home automation solution that works with all popular automation control systems.

  • NEW! Built-In Wi-Fi!

Configure the mount and connect it to home automation when hardwired Ethernet is not available

  • NEW! Post-Installation Leveling

Allows for easier position refinement for TVs and interactive displays after the mount is installed

  • Automated Drop-Down and Motorized Swivel

Patented Multi-Axis hub, proprietary software, and precision actuators automatically lower and swivel the TV into position

  • Works With or Without Home Automation

Works with the included remote or with Logitech, URC remotes as well as Control 4, Crestron, Elan, RTI, Savant, and URC

  • Power Sensing Technology

Automatically lowers the TV to the favorite preset position when the TV is turned on and automatically retracts it to the stowed position when the TV is turned off

  • Heat-Sensing Monitor

TV automatically retracts to its home position when an unsafe temperature is detected

  • Soft & Hard Travel Stops

Vertical and horizontal travel limits configured through both software and hardware, provide a virtual safety shield that prevents the TV from touching the wall or mantel

  • Recessible Housing

Conceals the lifting arm and electronics in the raised position. Can be recessed for flush-to-wall installations.

  • Multiple Memory Presets

Easily program multiple preset positions for favorite viewing locations

  • Power Loss Recovery

Keeps its last location in memory, eliminating the need for a reset after power interruption

  • Plug & Play Networking

DHCP enabled right out of the box. Easily identifiable on the network

  • On-Board Web Server

For simple, browser-based configuration of the mount even without it being connected to a network

  • Horizontal Braces with Paintable Covers

For fast and easy retrofitting to existing stud bays – recessed or surface mounted

Useful Documents


TV Weight Capacityup to 125 lbs
TV Size65"- 100"
VESA CompatibilityUp to 600mm x 600mm

Misc. Specs

Product Weight (lbs.)90.2
Mount TypeSwivel
Smart CompatibleYes
Wifi CapableYes
Weight Capacity (lbs.)125
Mounting LocationWall
Manufacturer WarrantyLifetime limited consumer warranty included
CollectionPRO Series
Color Finish NameBlack
WarningProposition 65 Warning for California Residents
