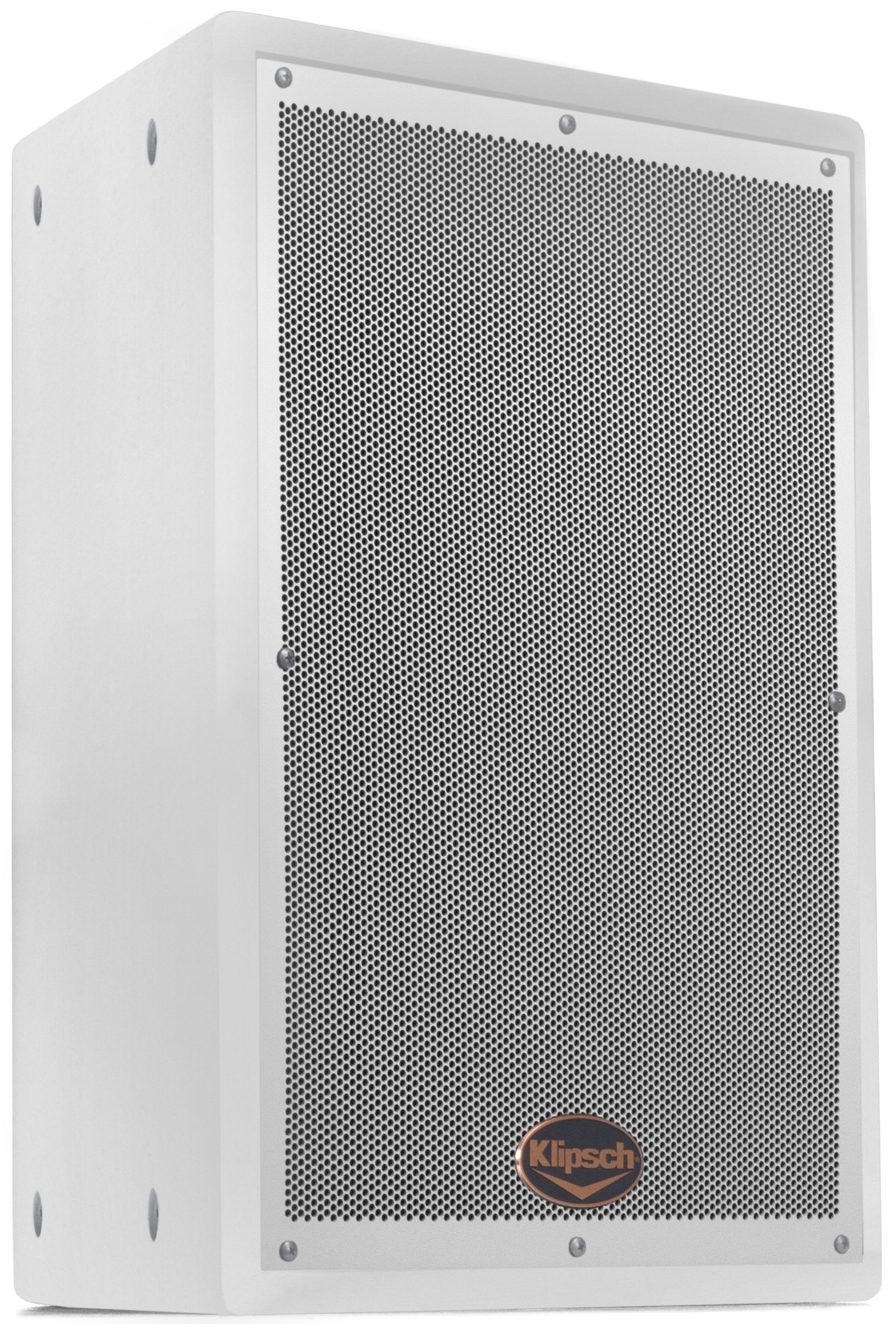

Klipsch® Trapezoidal White 12" 2-Way Loudspeaker

Model #: KI-262-SMA-II-White
876814
Klipsch
At a Glance
The KI-262-SMA-II two-way trapezoidal loudspeaker is ideally suited for applications where small size uniform power response and ease of installation contribute to a quality sound solution. The Tractrix® Horn- loaded KI-262-SMA-II is recommended for use in theaters, auditoriums, clubs, churches, and A/V production environments.
$1,619.00

Get to know this product.

Able to hang using 16 built-in 3/8” 16-thread fly points the KI-262-SMA-II provides the coverage control, fidelity, and reliability expected of Klipsch professional loudspeakers. The plywood enclosure uses dado “lock-joint” and rabbet construction techniques on CNC- fabricated panels for long-term reliability and ruggedness.

Features

  • Compact 22.5º symmetrical trapezoidal design
  • 12” woofer and 1.75” titanium diaphragm high-frequency compression driver
  • 60º X 40º Modified Tractrix horn for tight pattern control
  • Internal high current full-range crossover
  • 16 suspension points
  • KLIP-circuit HF driver protection devices
  • Available in Black, White or Raw Birch finish
Useful Documents
Specification Sheet
Manual
Brochure
Specifications

Specifications

Frequency Response71 Hz - 20 kHz (-10 dB @ 57 Hz)
Power Handling300 watts (35V); 1200 watts peak
Maximum SPL121 dB Continuous; 127 dB Peak
Sensitivity100 dB
CoverageHorizontal: 60° +/- 15º 2 kHz - 20 kHz; Vertical: 40° +/- 20º 4 kHz - 20 kHz
Directivity Index (DI)9 dB +/- 2 dB 2 kHz - 20 kHz
Directivity Factor (Q)7.9
Nominal Impedance8 ohms, minimum 4.1 ohms @ 152 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency900 Hz
ComponentsOne K-281-EP 12" woofer; One K-70-G 1.75” titanium compression driver on a K-604 horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints; Two 5/16”-18 threaded holes (top and bottom) for C-bracket
Enclosure Material3/4” 7-ply birch plywood cabinet; 1” MDF motorboard
Height23” (58.42cm)
Width17” (43.18cm) front 6.8” (17.27cm) rear
Depth12.6” (32.03cm)
Weight49 lbs. (22.27kg)
FinishesBlack, White and Raw Birch
AccessoriesSB-102 Mounting Bracket

Misc. Specs

Product Weight (lbs.)49
MPN1062019
Color Finish NameWhite
RMS Power Handling (Watts)1200
ColorWhite
Impedance8 ohms
Depth (in.)12.6
Height (in.)23
Width (in.)17
