The KI-102-SMA-II is a compact two-way trapezoidal loudspeaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A

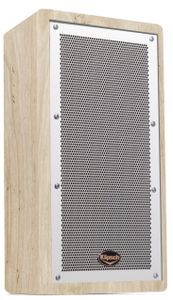

Klipsch® Trapezoidal Raw Birch 8" 2-Way Loudspeaker System

The KI-102-SMA-II features a hybrid Tractrix "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.

CNC fabrication techniques dado “lock-tab” and rabbet joint construction contribute to industry leading reliability maximum precision and ruggedness and a cabinet remarkably free from resonance and cabinet-induced coloration. Mounting capabilities include top and bottom attachments for the optional SB-102 “U”-shaped bracket

Compact 22.5º symmetrical trapezoidal design

8” woofer and 1” titanium diaphragm high-frequency compression driver

KLIP-circuit HF driver protection devices

Top/Bottom attachments for optional Klipsch SB-102 U-shaped bracket

Available in Black, White or Raw MDF finish

The KI-102-SMA-II is a compact two-way trapezoidal loudspeaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.

General Specs
Product Weight (lbs.)	24
MPN	1061962
Color Finish Name	Raw Birch
RMS Power Handling (Watts)	800
Color	Beige
Impedance	8 ohms
Speaker Type	Floor-Standing Speakers
Depth (in.)	9.3
Height (in.)	18.9
Width (in.)	11.6
Specifications
Frequency Response	88 Hz - 17 kHz (-10 dB @ 56 Hz)
Power Handling	200 watts (31V); 800 watts peak
Maximum SPL	115 dB Continuous; 121 dB Peak
Sensitivity	95 dB
Coverage	Horizontal: 90° +/- 20º 2.1 kHz - 19 kHz; Vertical: 90° +/- 30º 2.5 kHz - 19 kHz
Directivity Index (DI)	7 dB +/- 1 dB 1 kHz - 17 kHz
Directivity Factor (Q)	5
Nominal Impedance	8 ohms, minimum 4.9 ohms @ 184 Hz
Overload Protection	KLIP Overload Protection Circuit-HF
Crossover Frequency	2 kHz
Components	One K-81-ST 8" woofer; One K-103-TI-KP 1” titanium compression driver on a K-802-M horn
Input Connection	Two point barrier strip
Mounting Options	2 screw: 1/4” x 20 Machine screw for SB-102 Bracket
Enclosure Material	3/4" MDF
Height	18.9” (48.00cm)
Width	11.6” (29.46cm) front; 4.2” (10.67cm) rear
Depth	9.3” (23.77cm)
Weight	24 lbs. (10.90kg)
Finishes	Black, White and Raw MDF
Accessories	SB-102 Mounting Bracket
