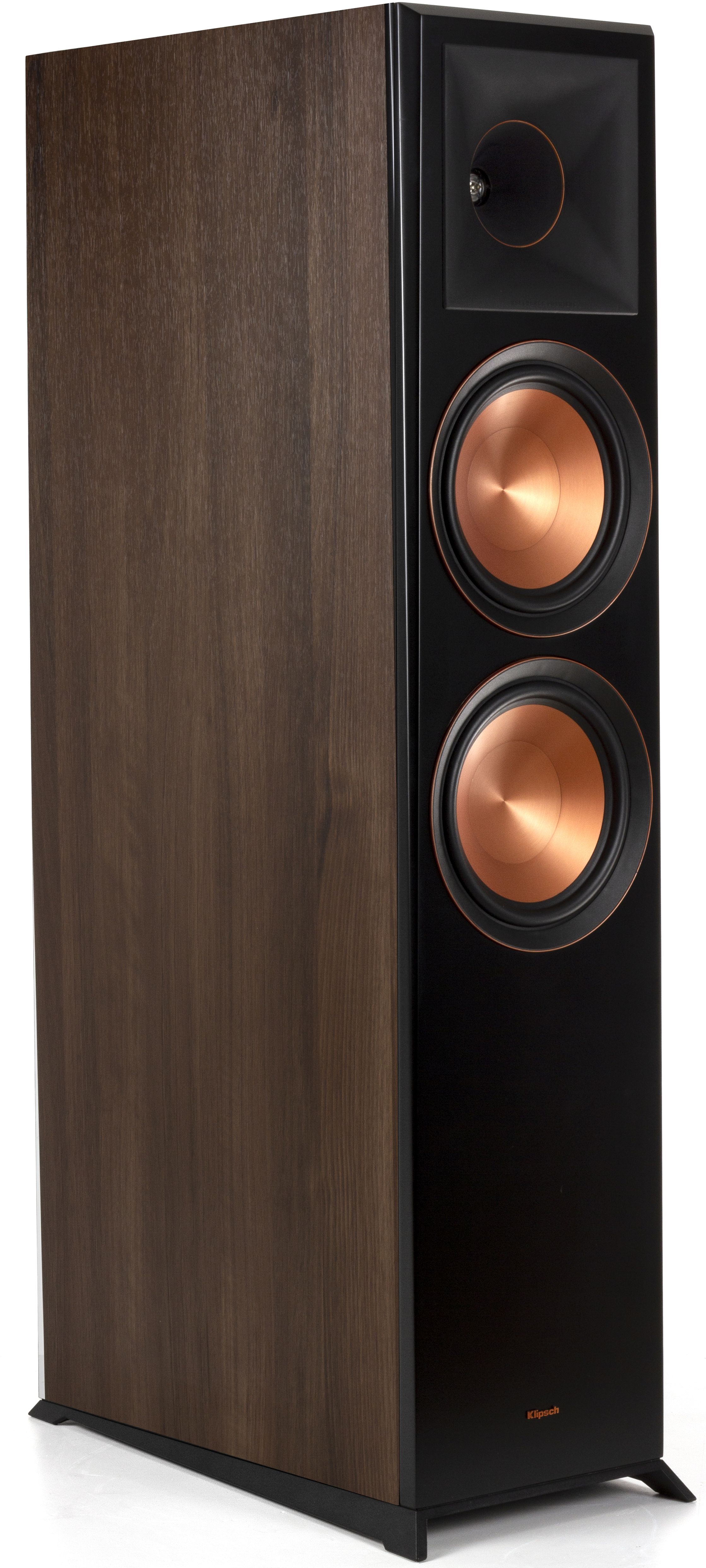

Klipsch® Reference Premiere Walnut RP-8060FA Floorstanding Speaker

Model #: RP-8060FA-Walnut Vinyl
At a Glance
The Reference Premiere RP-8060FA Dolby Atmos® enabled floorstanding speaker includes a built-in elevation channel speaker integrated into the top of the speaker to reflect sound off the ceiling to deliver the overhead Dolby Atmos® experience in addition to stereo sound towards the listener.

Get to know this product.

  • Built-in Elevation Channel for Dolby Atmos®
  • 1” Titanium LTS Vented Tweeter with Hybrid Tractrix® Horn
  • Main Channel: 8" Spun Copper Cerametallic™ Woofers
  • Height Channel: 6.5" Spun Copper Cerametallic™ Woofer
  • Bass-Reflex via Rear-Firing Tractrix® port
  • Dual binding posts for bi-wire/bi-amp
  • Strong, Flexible Removable Magnetic Grille
  • Dimensions: 43.12” x 10.90” x 19.80”

Dolby Atmos

To put it simply, Dolby Atmos® is the greatest advancement in home and cinema audio since surround sound. The addition of elevation speakers reflects sound from the ceiling to put sound anywhere in your room - making you feel like you’re truly in the middle of the action.

Hybrid Tractrix® Horn Technology

Klipsch proprietary Tractrix® horn loading technology ensures high-frequency energy of the RP-8060FA is aimed directly at the listener and reduces unwanted, artificial reverb - meaning you experience the most clear, detailed, lifelike sound possible.

Horn Anatomy

Klipsch Reference Premiere series speakers feature a compressed molded silicon face thats matted to the 90x90 Tractrix horn to reduces horn resonance for a smoother frequency response. Klipsch computer modeled phase plugs acts as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.

All-New Vented Tweeter

A vented tweeter design reduces standing waves behind the tweeter diaphragm for a smoother high frequency reproduction. The titanium tweeter diaphragm's light weight yet rigid composition exceeds the performance of aluminum, polymer or silk tweeters. Klipsch award-winning Linear Travel Suspension technology leverages a piston motion of the titanium diaphragm that lowers distortion and delivers real-to-life sound. A ceramic magnet housing provides premium performance, Klipsch Reference Premiere tweeters set the standard in acoustic reproduction.

Cerametallic™ Woofers

Klipsch Proprietary Cerametallic™ woofers are the RP-8060FA signature statement for both sound and aesthetics. This extremely light, rigid materials holds its shape while being able to deliver lower frequencies with maximum efficiency.

Woofer Anatomy

Klipsch Cerametallic™ cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity. Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.

Tractrix® Port + Dual Terminals

The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies. The RP-8060FA floorstanding speaker features dual input terminals so you can bi-wire or bi-amp your speakers for a custom, high-performance experience.

Finished To Perfection

The RP-8060FA ebony and walnut finishes boast satin painted baffles with a scratch resistant finish. The cast aluminum feet provides a modern look with less resonance than MDF or ABS plastic. It is mechanically designed to minimize surface area in contact with the floor, decoupling the speaker for faster, tighter low frequencies and more detail.



Connector Type:Dual Binding Posts


Enclosure Type:Bass Reflex Via Rear-Firing Tractrix® Port
Woofer Composition:Cerametallic™ Cone


Crossover Type:1750 Hz
Sold As:Each

Main Channel Specifications

Frequency Response32-25kHz +/- 3dB
Sensitivity98dB @ 2.83V / 1m
Power Handling (Cont/Peak)150/600
Nominal Impedance8 Ohms Compatible
Crossover Frequency1750Hz
High Frequency Driver1” Titanium LTS Vented Tweeter with Hybrid Cross-Section Tractrix® Horn
Low Frequency DriverDual 8” Cerametallic Cone Woofers
Enclosure MaterialMDF
Enclosure TypeBass Reflex via rear-firing Tractrix® Port
InputsDual binding posts / bi-wire / bi-amp
Height43.12” (109.5 cm)
Width10.90” (27.7 cm)
Depth19.80” (50.3 cm)
Weight71 lb (32.2 kg)
FinishEbony, Walnut, Piano Black
Built From2018

Height Channel Specifications

Frequency ResponseConforms to Dolby Atmos Specifications
SensitivityConforms to Dolby Atmos Specifications
Power Handling (Cont/Peak)75W / 300W
Nominal Impedance8 Ohms Compatible
Crossover Frequency2kHz
High Frequency Driver1” Titanium LTS Tweeter with Hybrid Tractrix Horn
Low Frequency Driver6.5” Cerametallic Cone Woofer
Enclosure MaterialMDF
Enclosure TypeAcoustic Suspension
InputsSingle Binding Posts

Misc. Specs

Product Weight (lbs.)71
Color Finish NameWalnut
RMS Power Handling (Watts)600
Impedance8 ohms
Number of Speakers1
Speaker TypeFloor-Standing Speakers
Depth (in.)19.8
Height (in.)43.12
Width (in.)10.90
WarningProposition 65 Warning for California Residents
