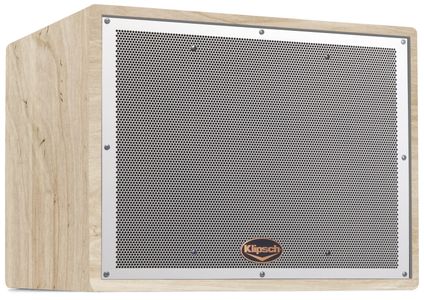

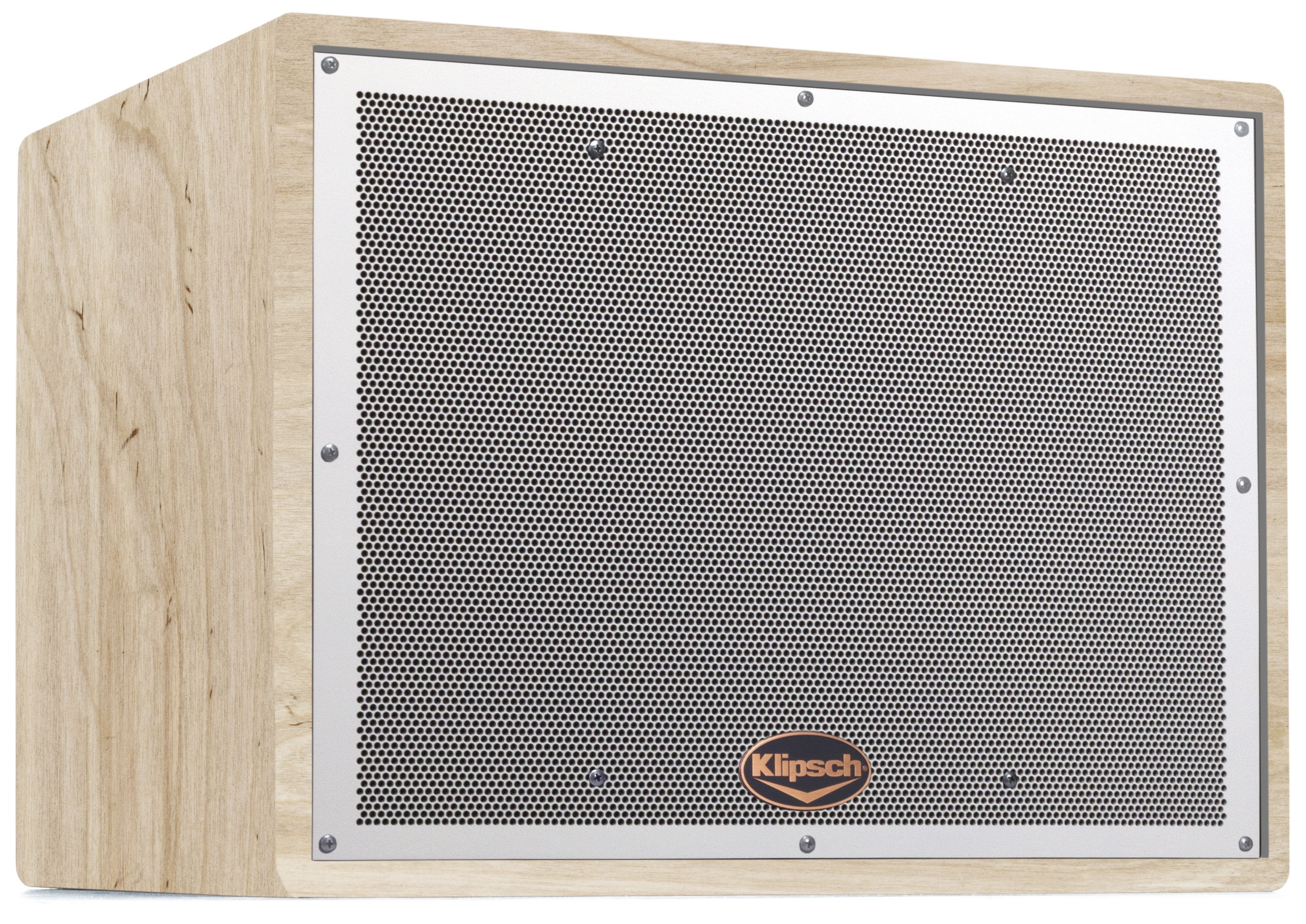

Klipsch® Raw Birch Single 15" Subwoofer

Model #: KI-115-SMA-II-Raw Birch

$1,549.00

At a Glance

Designed for high output, long-term reliability, the Klipsch KI-115-SMA-II low frequency enclosure utilizes a single K-48-ST cast frame 15” woofer. This 104-ounce magnet, 3” voice coil powerhouse delivers high sensitivity with superior power handling. Klipsch’s specially designed speaker motor assembly ensures that high transient cone excursions won’t damage the voice coil former under extreme output applications.

WarningProposition 65 Warning for California Residents
Klipsch® Raw Birch Single 15" Subwoofer

General Specs

Product Weight (lbs.)62
ColorBeige
Depth (in.)19.2
Width (in.)24.6
Height (in.)18.5
Speaker TypePowered Subwoofers
MPN1062013
Color Finish NameRaw Birch
RMS Power Handling (Watts)1600
Subwoofer Size13+

Specifications

Frequency Response49 Hz - 200 kHz (-10 dB @ 35 Hz)
Power Handling400 watts (44.7V); 1600 watts peak
Maximum SPL124 dB Continuous; 130 dB Peak
Sensitivity101 dB
Nominal Impedance8 ohms, minimum 5 ohms @ 39 Hz
ComponentsOne K-48-ST 15” woofers
Input ConnectionTwo point barrier strip
Mounting OptionsFour 3/8”-16 flypoints
Enclosure Material3/4" 7-ply birch plywood cabinet
Height18.5” (46.99cm)
Width24.6” (62.48cm)
Depth19.2” (48.77cm)
Weight62 lbs. (28.18kg)
FinishesBlack, White and Raw Birch

Klipsch® Raw Birch Single 15" Subwoofer

Model #: KI-115-SMA-II-Raw Birch
876991
Klipsch

$1,549.00

At a Glance

Designed for high output, long-term reliability, the Klipsch KI-115-SMA-II low frequency enclosure utilizes a single K-48-ST cast frame 15” woofer. This 104-ounce magnet, 3” voice coil powerhouse delivers high sensitivity with superior power handling. Klipsch’s specially designed speaker motor assembly ensures that high transient cone excursions won’t damage the voice coil former under extreme output applications.

Get to know this product.

Perfect for music reinforcement and reproduction, the KI-115 finds ready application in clubs, theaters, auditoriums, churches and performance environments. The rugged, tuned port, 3/4” furniture grade plywood enclosure utilizes CNC fabrication techniques for uniform tolerances, contributing to advanced reliability and ruggedness. Dado “locktab” and rabbet joint construction contribute to freedom from resonance and cabinet-induced coloration.

The KI-115-SMA-II utilizes four 3/8"-16 suspension points, located on the rear of the enclosure, to support suspended applications in a "face-down" orientation.

Features

High power 15” low frequency speaker system

Compatible with Klipsch KI-102-SMA-II, KI-172-SMA-II, KI-262-SMA-II, and KI-272-SMA-II speaker models

Specially designed motor assembly assure high transient cone excursions do not harm the voice coil under extreme out application

Four suspension points on the back of cabinet (face down orientation only)

124 dB SPL maxmium output

Available in Black, White or Raw Birch finish

Specifications

General Specs

Product Weight (lbs.)62
ColorBeige
Depth (in.)19.2
Width (in.)24.6
Height (in.)18.5
Speaker TypePowered Subwoofers
MPN1062013
Color Finish NameRaw Birch
RMS Power Handling (Watts)1600
Subwoofer Size13+

Specifications

Frequency Response49 Hz - 200 kHz (-10 dB @ 35 Hz)
Power Handling400 watts (44.7V); 1600 watts peak
Maximum SPL124 dB Continuous; 130 dB Peak
Sensitivity101 dB
Nominal Impedance8 ohms, minimum 5 ohms @ 39 Hz
ComponentsOne K-48-ST 15” woofers
Input ConnectionTwo point barrier strip
Mounting OptionsFour 3/8”-16 flypoints
Enclosure Material3/4" 7-ply birch plywood cabinet
Height18.5” (46.99cm)
Width24.6” (62.48cm)
Depth19.2” (48.77cm)
Weight62 lbs. (28.18kg)
FinishesBlack, White and Raw Birch
