Klipsch® R-620F Floorstanding Speaker

Model #: R-620F
At a Glance

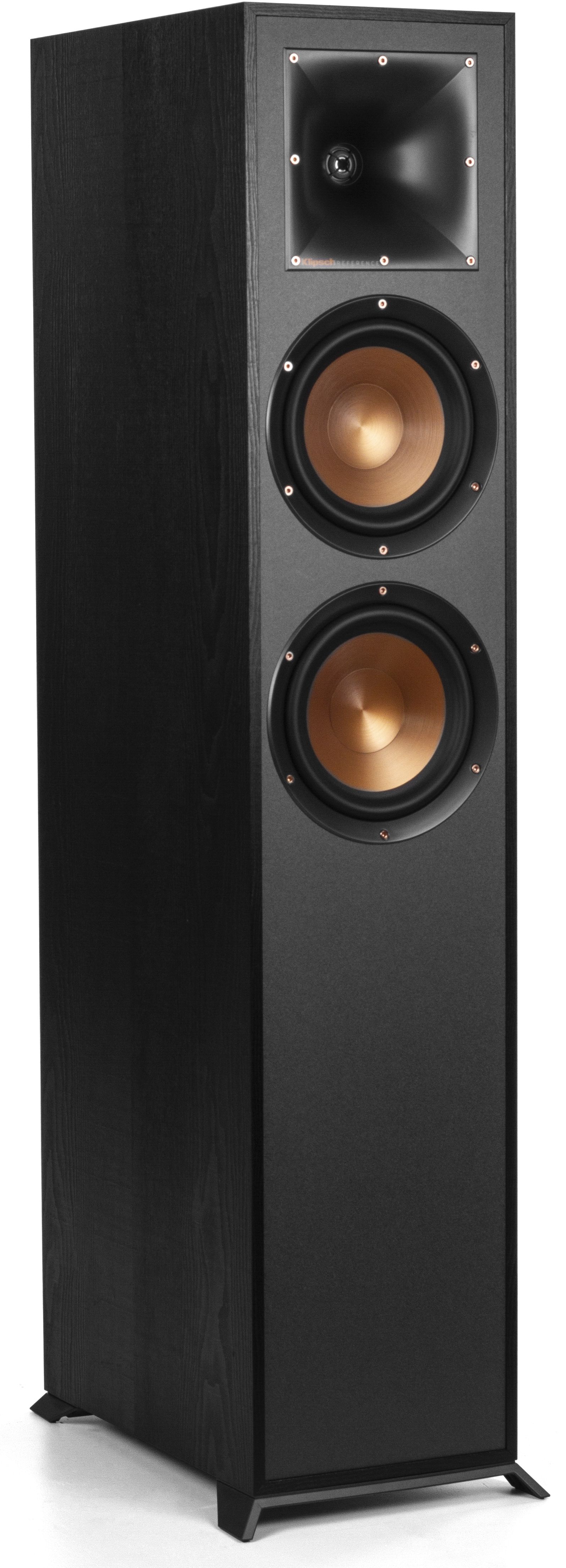

The Reference R-620F floorstanding speaker is packed with best-in-class audio technology for an incredible listening experience that is built on over 70 years of Klipsch acoustic experience.

Get to know this product.

  • 1" Aluminum LTS tweeter
  • 90x90 Square Tractrix Horn
  • Dual 6.5" Spun-Copper IMG Woofers
  • Bass-Reflex via Rear-Firing Tractrix® ports
  • Strong, Flexible Removable Magnetic Grille
  • Dimensions: 40" x 9.4" x 15.2"

Tractrix® Horn Technology

Klipsch exclusive 90x90º Tractrix® horn technology ensures that the R-620F high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.

Linear Travel Suspension Tweeter with Kapton® Suspension

Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.

Spun Copper IMG Woofers

Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion. When paired with the Tractrix Horn-Loaded LTS Tweeter, it provides speaker efficiency highest in its class.

Tractrix® Port

The dual front Tractrix® ports are perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies. Front-firing ports allow the R-34C center speaker to be placed right against your wall or entertainment system without impacting the bass response.

Sleek Design

Exposed fasteners, a low profile magnetic grille and a scratch-resistant, textured wood grain vinyl give the R-34C center channel speaker a polished, modern appearance.

High Quality Cabinet Design

Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.



Connector Type:Single Gold Plated Binding Posts


Enclosure Type:Bass-Reflex Via Rear-Firing Tractrix®Ports
Tweeter Composition:Aluminum
Woofer Composition: IMG (Injection Molding Graphite)

Material & Finish

Finish:Textured Wood Grain Vinyl


Crossover Type:2,000 Hz
Sold As:Each


Frequency Response38Hz - 21kHz +/- 3dB
Sensitivity96 dB @ 2.83V/1M
Power Handling (Cont/Peak)100W/400W
Nominal Impedance8 ohms Compatible
Crossover Frequency2,000 Hz
High Frequency Driver1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
Low Frequency DriverDual 6.5” spun-copper IMG woofers
Enclosure MaterialMDF
Enclosure TypeBass-Reflex via rear-firing Tractrix®ports
InputsSingle Gold Plated Binding Posts
Height40” (1017 mm)
Width9.4” (240 mm)
Depth15.2” (386 mm)
Weight41 lbs (18.6 kg)
FinishBlack Textured Wood Grain Viny
Included AccessoriesInjection molded feet & screws
Built From2018

Misc. Specs

Product Weight (lbs.)41
RMS Power Handling (Watts)400
Impedance8 ohms
Number of Speakers1
Speaker TypeFloor-Standing Speakers
Depth (in.)15.2
Height (in.)40
Width (in.)9.4
