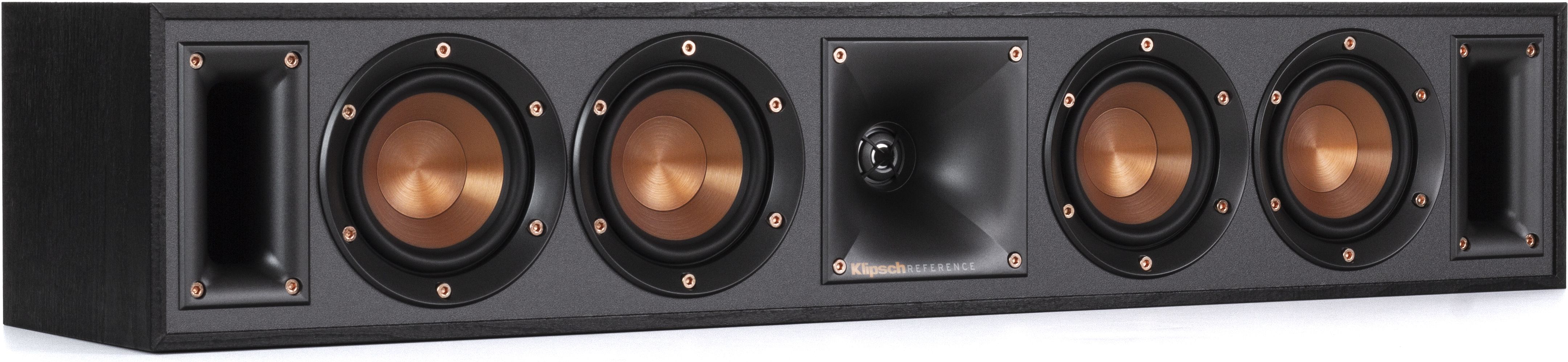

At only 5.2" tall, the R-34C center channel speaker compliments today's flat panel TVs with an unobtrusive, low-profiled design - all while delivering dynamic, crystal-clear acoustics for your movies and music. Dual front-firing Tractrix® ports allow the R-34C to be placed right against your wall or entertainment system without effecting the bass response.
Connector Type | Single Gold Plated Binding Posts |
---|
Crossover Type | 1,600 Hz |
---|---|
Sold As | Each |
Enclosure Type | Bass-Reflex Via Forward-Firing Tractrix® Ports |
---|---|
Tweeter Composition | Aluminum |
Woofer Composition | IMG (Injection Molding Graphite) |
Product Weight (lbs.) | 13 |
---|---|
MPN | 1065837 |
Color Finish Name | Black |
RMS Power Handling (Watts) | 400 |
Color | Black |
Impedance | 8 ohms |
Speaker Type | Center Channel Speakers |
Depth (in.) | 6.2 |
Height (in.) | 5.2 |
Width (in.) | 26 |
Frequency Response | 82Hz - 21kHz +/- 3dB |
---|---|
Sensitivity | 96 dB @ 2.83V/1M |
Power Handling (Cont/Peak) | 100W/400W |
Nominal Impedance | 8 ohms Compatible |
Crossover Frequency | 1,600 Hz |
High Frequency Driver | 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn |
Low Frequency Driver | Quad 3.5” spun-copper IMG woofers |
Enclosure Material | MDF |
Enclosure Type | Bass-Reflex via forward-firing Tractrix®ports |
Inputs | Single Gold Plated Binding Posts |
Height | 5.2” (133 mm) |
Width | 26” (660 mm) |
Depth | 6.2” (157 mm) |
Weight | 13 lbs (5.9 kg) |
Finish | Black Textured Wood Grain Vinyl |
Included Accessories | Rubber Feet (4) |
Built From | 2018 |
1" Aluminum LTS tweeter
90x90 Square Tractrix® Horn
Quad 3.5" Spun-Copper IMG Woofers
Bass-Reflex via Dual Front-Firing Tractrix® Ports
Strong, Flexible Removable Magnetic Grille
Dimensions: 5.2" x 26" x 6.2"
Klipsch exclusive 90x90º Tractrix® horn technology ensures that the R-34C high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion. When paired with the Tractrix Horn-Loaded LTS Tweeter, it provides speaker efficiency highest in its class.
The dual front Tractrix® ports are perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies. Front-firing ports allow the R-34C center speaker to be placed right against your wall or entertainment system without impacting the bass response.
Exposed fasteners, a low profile magnetic grille and a scratch-resistant, textured wood grain vinyl give the R-34C center channel speaker a polished, modern appearance.
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
Product Weight (lbs.) | 13 |
MPN | 1065837 |
Color Finish Name | Black |
RMS Power Handling (Watts) | 400 |
Color | Black |
Impedance | 8 ohms |
Speaker Type | Center Channel Speakers |
Depth (in.) | 6.2 |
Height (in.) | 5.2 |
Width (in.) | 26 |
Connector Type: | Single Gold Plated Binding Posts |
Enclosure Type: | Bass-Reflex Via Forward-Firing Tractrix® Ports |
Tweeter Composition: | Aluminum |
Woofer Composition: | IMG (Injection Molding Graphite) |
Crossover Type: | 1,600 Hz |
Sold As: | Each |
Frequency Response | 82Hz - 21kHz +/- 3dB |
Sensitivity | 96 dB @ 2.83V/1M |
Power Handling (Cont/Peak) | 100W/400W |
Nominal Impedance | 8 ohms Compatible |
Crossover Frequency | 1,600 Hz |
High Frequency Driver | 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn |
Low Frequency Driver | Quad 3.5” spun-copper IMG woofers |
Enclosure Material | MDF |
Enclosure Type | Bass-Reflex via forward-firing Tractrix®ports |
Inputs | Single Gold Plated Binding Posts |
Height | 5.2” (133 mm) |
Width | 26” (660 mm) |
Depth | 6.2” (157 mm) |
Weight | 13 lbs (5.9 kg) |
Finish | Black Textured Wood Grain Vinyl |
Included Accessories | Rubber Feet (4) |
Built From | 2018 |
