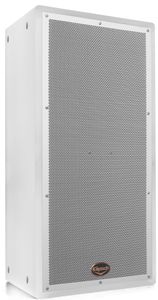

Klipsch® Professional White Trapezoidal Dual 15" Subwoofer
Klipsch® Professional White Trapezoidal Dual 15" Subwoofer 0
Klipsch® Professional White Trapezoidal Dual 15" Subwoofer 1
Klipsch® Professional White Trapezoidal Dual 15" Subwoofer 2
Klipsch® Professional White Trapezoidal Dual 15" Subwoofer 3

Klipsch® Professional White Trapezoidal Dual 15" Subwoofer

Model #: KI-215-SMA-II-White
877009
Klipsch
At a Glance
The KI-215-SMA-II trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) subwoofer perfectly complements Klipsch’s high power full- range loudspeaker systems. The KI-215-SMA-II’s enclosure dimensions and rigging configuration are identical to the KI-362-SMA-II full-range professional loudspeaker system, making it an ideal match when using an external, active two-way crossover.
$2,004.00

Get to know this product.

Its highest-quality heavy-duty drive components use 104-ounce magnets and 3” voice coils as well as proprietary speaker motor assemblies to deliver high sensitivity and advanced power handling capabilities.

Ideal for clubs, theaters, auditoriums, churches, and performance halls the plywood construction tuned port enclosure applies CNC fabrication techniques for uniform tolerances and build reliability.

  • Dual 15” (38.1cm) cast frame transducers with 3” voice coils
  • 130 dB SPL maximum output
  • 22.5º symmetrical trapezoidal design makes it an ideal music reinforcement match with the KI-396, KI-262, and KI-272 when using an external, active crossover
  • Low 40 Hz cabinet tuning allows electronic EQ to be added for extended response without undue component stress
  • 16 suspension points for flexible mounting and rigging bar compatibility
  • Available in Black, White or Raw Birch finish
Specifications

General

Frequency Response70 Hz - 2.4 kHz (-10 dB @ 53 Hz)
Power Handling800 watts (53V); 3200 watts peak
Maximum SPL130 dB Continuous; 136 dB Peak
Sensitivity105 dB
Nominal Impedance8 ohms, minimum 3.5 ohms @ 42 Hz
ComponentsTwo K-45-ST 15” woofers
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints
Bracket MountOne attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material3/4" 7-ply birch plywood cabinet; 1” MDF motorboard
Height34.3” (87.12cm)
Width19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth16” (40.64cm)
Weight81 lbs. (36.82kg)
FinishesBlack, White and Raw Birch

Misc. Specs

Product Weight (lbs.)81
ColorWhite
Depth (in.)16
Width (in.)19.8
Height (in.)34.3
MPN1062015
Color Finish NameWhite
RMS Power Handling (Watts)3200
Subwoofer Size15
