Product Dimensions 17"h x 23"w x 15.8"d

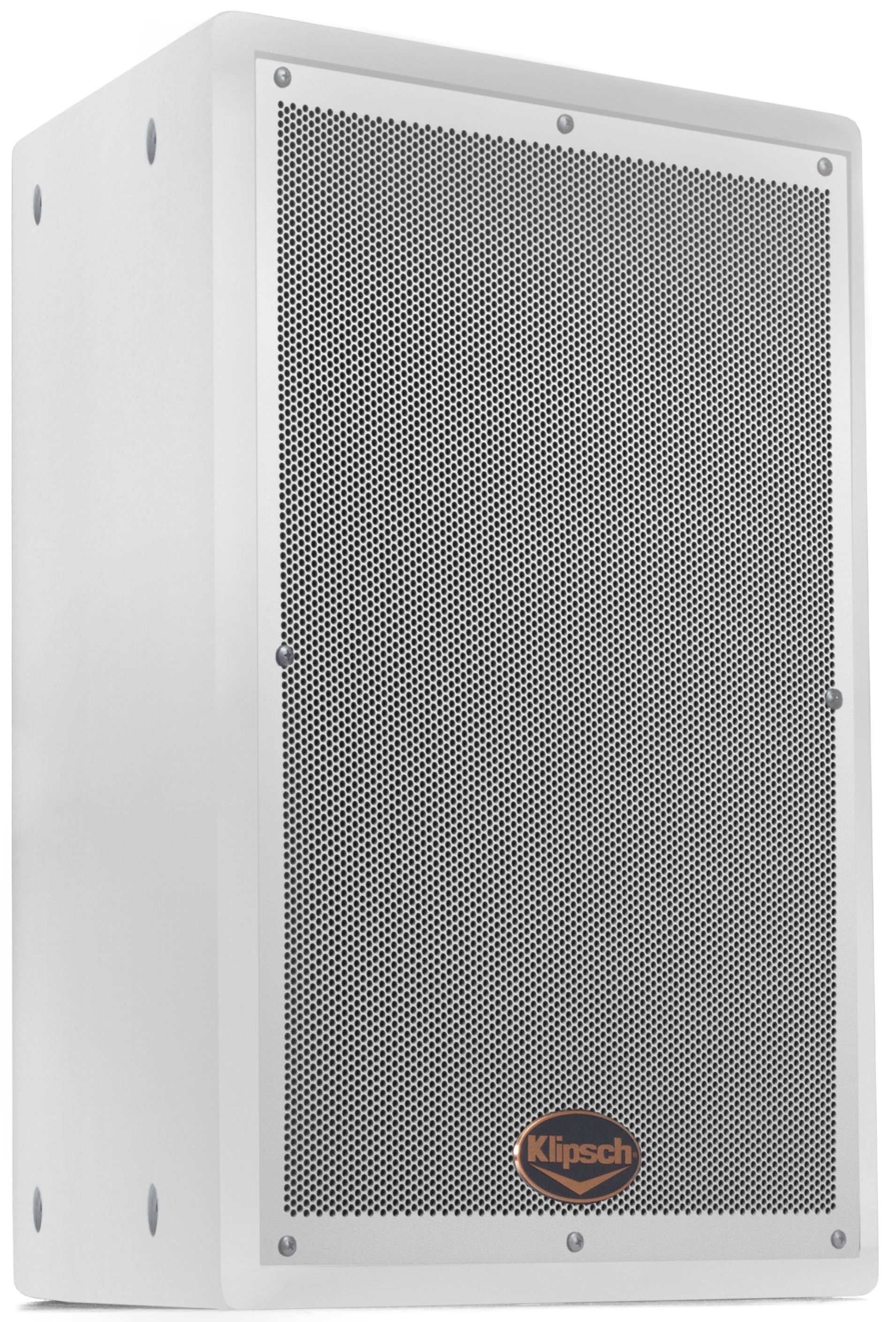

The KI-272-SMA-II two-way, multi-angle loudspeaker is a high power solution for limited space installations, where angled mounting is required. It’s perfect for angled wall, corner, ceiling, oblique angle projection or under-balcony mounting in theaters, clubs, churches and schools.Read More
Able to hang using 12 built-in 3/8” 16-thread fly points, the KI-272-SMA-II provides the performance and reliability for which Klipsch is known.
Multiple angle 45º and 65º asymmetrical design two-way speaker
Perfect for angled wall, corner, ceiling or under-balcony mounting
12” woofer and 1.75” titanium diaphragm high-frequency compression driver
60º X 40º Modified Tractrix horn
Internal high current full-range crossover
12 suspension points
KLIP-circuit HF driver protection devices
Available in Black, White or Raw Birch finish
General Specs | |
| Product Weight (lbs.) | 51 |
| MPN | 1062022 |
| Color/Finish Name | White |
| RMS Power Handling (Watts) | 1200 |
| Color | White |
| Impedance | 8 ohms |
| Depth (in.) | 15.8 |
| Height (in.) | 17 |
| Width (in.) | 23 |
General | |
| Frequency Response | 65 Hz - 20 kHz (-10 dB @ 47 Hz) |
| Power Handling | 300 watts (35V); 1200 watts peak |
| Maximum SPL | 121 dB Continuous; 127 dB Peak |
| Sensitivity | 100 dB |
| Coverage | Horizontal: 40° +/- 20º 3.5 kHz - 20 kHz; Vertical: 60° +/- 20º 2 kHz - 20 kHz |
| Directivity Index (DI) | 9 dB +/- 3 dB 2 kHz - 20 kHz |
| Directivity Factor (Q) | 7.9 |
| Nominal Impedance | 8 ohms, minimum 4 ohms @ 146 Hz |
| Overload Protection | KLIP Overload Protection Circuit-HF |
| Crossover Frequency | 900 Hz |
| Components | One K-281-EP 12" woofer; One K-70-G 1.75” titanium compression driver on a K-604 horn |
| Input Connection | Two point barrier strip |
| Mounting Options | Twelve 3/8”-16 flypoints; Two 5/16”-18 threaded holes (top and bottom) for C-bracket |
| Enclosure Material | 3/4” 7-ply birch plywood cabinet; 1” MDF motorboard |
| Height | 17” (43.18cm) |
| Width | 23” (58.42cm) |
| Depth | 15.8” (40.13cm) |
| Weight | 51 lbs. (23.18kg) |
| Finishes | Black, White and Raw Birch |
