Klipsch® Professional Raw White High Output 15" 2-Way Speaker

Model #: KI-396-SMA-II-White
876971
Klipsch
At a Glance

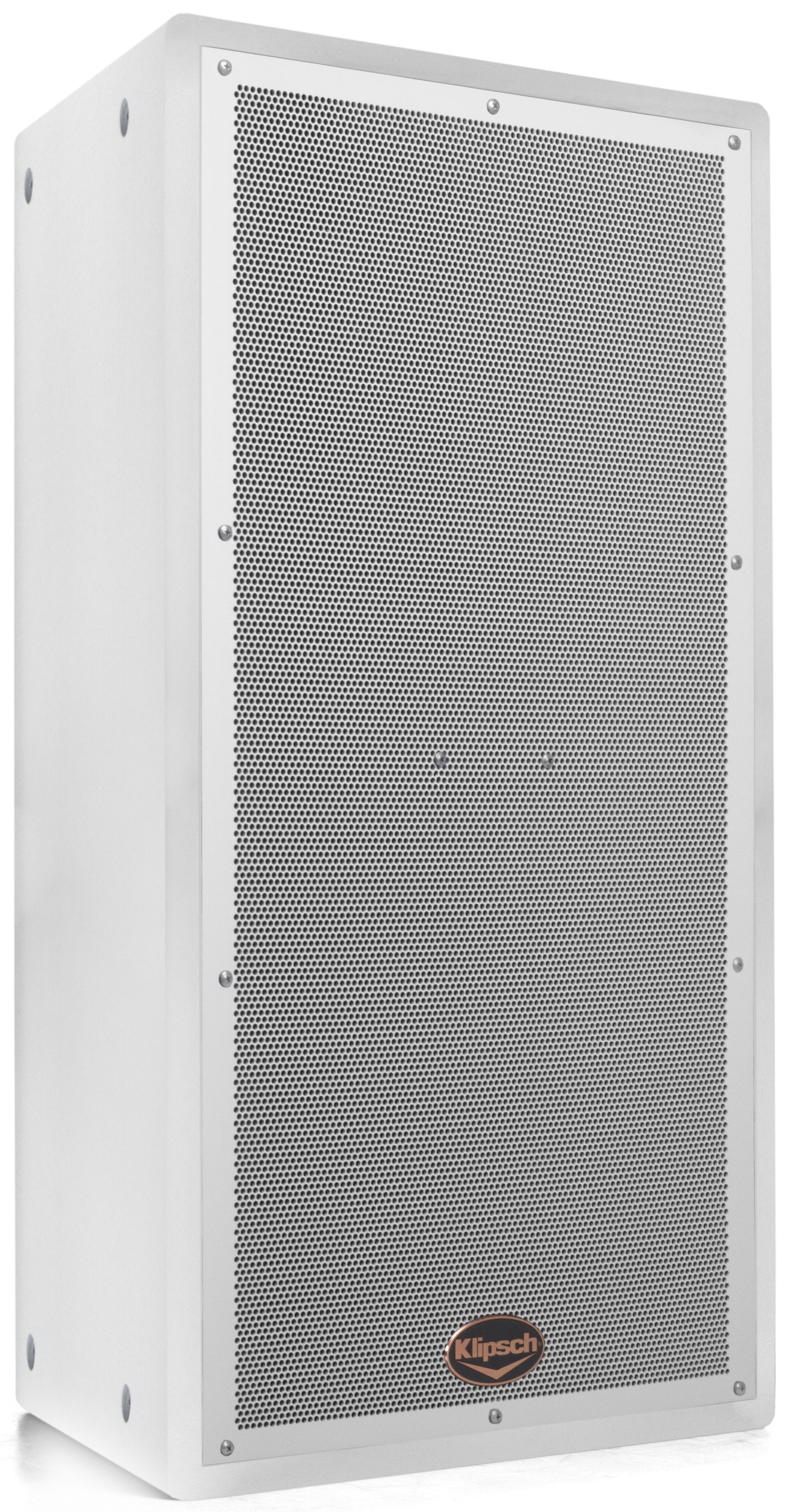

The Klipsch KI-396-SMA-II has incredible output capability with exceptional low-distortion clarity. The compact 22.5° symmetrical, trapezoidal design houses a 15” high-excursion cast frame heavy-duty woofer, a large 3” titanium high-frequency compression driver and a 90°x60° Tractrix® "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.
$3,419.00

Get to know this product.

The KI-396-SMA-II permanent install speaker has 16 suspension points (4 per side) for flexible mounting and rigging bar compatibility and includes an internal high current full-range crossover.

  • Very high output capability with exceptional low-distortion clarity
  • Compact 22.5º symmetrical trapezoidal design
  • 16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility
  • 15” cast frame heavy-duty woofer
  • Large 3” (7.62cm) titanium diaphragm high-frequency compression driver
  • Internal high current full-range crossover
  • Available in Black, White or Raw Birch finish
Useful Documents
Manual
Brochure
Specification Sheet
Specifications

Specifications

Frequency Response60 Hz - 18 kHz (-10 dB @ 35 Hz)
Power Handling600 watts (56V); 2400 watts peak
Maximum SPL127 dB Continuous; 133 dB Peak
Sensitivity101 dB
CoverageHorizontal: 90° +/- 30º 400 Hz - 13 kHz; Vertical: 60° +/- 20º 1.6 kHz - 20 kHz
Directivity Index (DI)8 dB +/- 2 dB 1.6 kHz - 20 kHz
Directivity Factor (Q)6.3
Nominal Impedance8 ohms, minimum 5.1 ohms @ 112 Hz
Crossover Frequency1 kHz
ComponentsOne K-48-ST 15" woofer; One K-691 3” titanium compression driver on a K-510 horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints
Bracket MountOne attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material3/4" 7-ply birch plywood cabinet; 1” MDF motorboard
Height34.3” (87.12cm)
Width19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth16” (40.64cm)
Weight76 lbs. (34.54kg)
FinishesBlack, White and Raw Birch

Misc. Specs

Product Weight (lbs.)76
MPN1062028
Color Finish NameWhite
RMS Power Handling (Watts)2400
ColorWhite
Impedance8 ohms
Depth (in.)16
Height (in.)34.3
Width (in.)19.8
