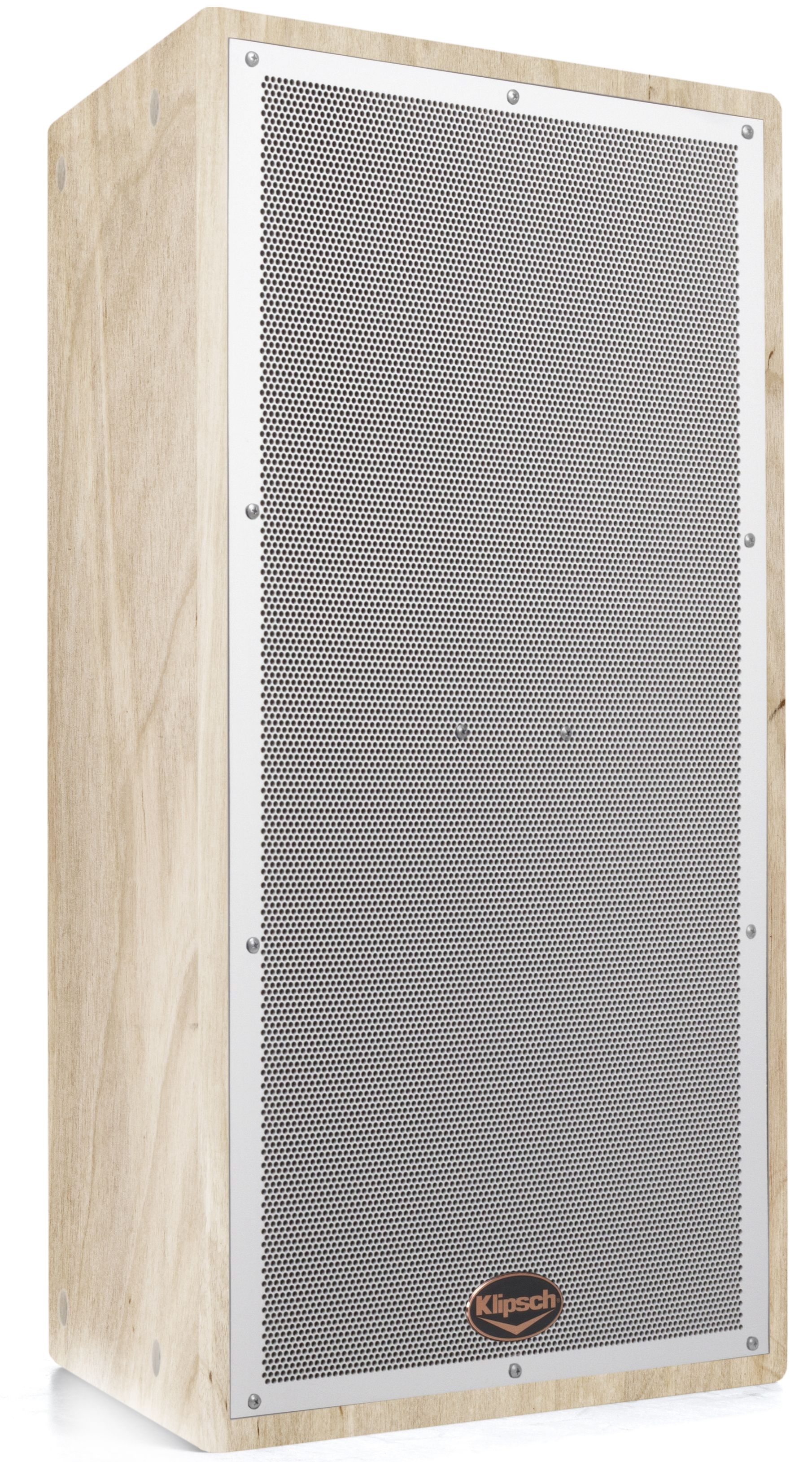

Klipsch® Professional Raw Birch Trapezoidal 15" 3-Way Speaker
Klipsch® Professional Raw Birch Trapezoidal 15" 3-Way Speaker 0
Klipsch® Professional Raw Birch Trapezoidal 15" 3-Way Speaker 1
Klipsch® Professional Raw Birch Trapezoidal 15" 3-Way Speaker 2
Klipsch® Professional Raw Birch Trapezoidal 15" 3-Way Speaker 3
Klipsch® Professional Raw Birch Trapezoidal 15" 3-Way Speaker 4

Klipsch® Professional Raw Birch Trapezoidal 15" 3-Way Speaker

Model #: KI-362-SMA-II-Raw Birch
876930
Klipsch
At a Glance
The KI-362-SMA-II three-way trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) loudspeaker is a value-engineered compact Tractrix® Horn-loaded system capable of superior performance in both permanent installation and production environments including theaters, auditoriums, music clubs, houses of worship, and A/V production environments.
$2,259.00

Get to know this product.

To permit use at any mounting angle the KI-362-SMA-II’s midrange and high-frequency drivers are adjustable in 45° increments allowing 60° or 90° projection patterns to be chosen independent of the vertical horizontal or lateral orientation of the enclosure.

  • Compact 22.5º symmetrical trapezoidal design
  • User-rotatable midrange and HF module for optimized pattern control
  • 16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility
  • 15” cast frame heavy-duty woofer
  • 1.5” and 1” titanium midrange and high-frequency compression drivers
  • Internal high current full-range crossover
  • KLIP circuit Mid and HF driver protection device
  • Available in Black, White or Raw Birch finish
Useful Documents
Brochure
Manual
Specification Sheet
Specifications

General

Frequency Response54 Hz - 20 kHz (-10 dB @ 38 Hz)
Power Handling400 watts (42V); 1600 watts peak
Maximum SPL124 dB Continuous; 130 dB Peak
Sensitivity101 dB
CoverageHorizontal: 90° +/- 30º 400 Hz - 16 kHz; Vertical: 60° +/- 20º 2.8 kHz - 20 kHz
Directivity Index (DI)8 dB +/- 2 dB 500 Hz - 20 kHz
Directivity Factor (Q)6.3
Nominal Impedance8 ohms, minimum 4.4 ohms @ 106 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency1.26 kHz and 6.8 kHz
ComponentsOne K-48-ST 15" woofer; One K-53-TI 1.5” titanium compression driver on a K-703-M horn; One K-100-TI 1” titanium compression driver on a K-79-T horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints
Bracket MountOne attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material3/4" 7-ply birch plywood cabinet; 1” MDF motorboard
Height34.3” (87.12cm)
Width19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth16” (40.64cm)
Weight70 lbs. (31.81kg)
FinishesBlack, White and Raw Birch

Misc. Specs

Product Weight (lbs.)70
MPN1062026
Color Finish NameRaw Birch
RMS Power Handling (Watts)1600
ColorOff-White
Impedance8 ohms
Depth (in.)16
Height (in.)34.3
Width (in.)19.8
