Klipsch® Professional Black KI-172-SMA-II Multi-Angle 8" 2-Way Loudspeaker

Model #: KI-172-SMA-II-Black
876784
Klipsch
At a Glance

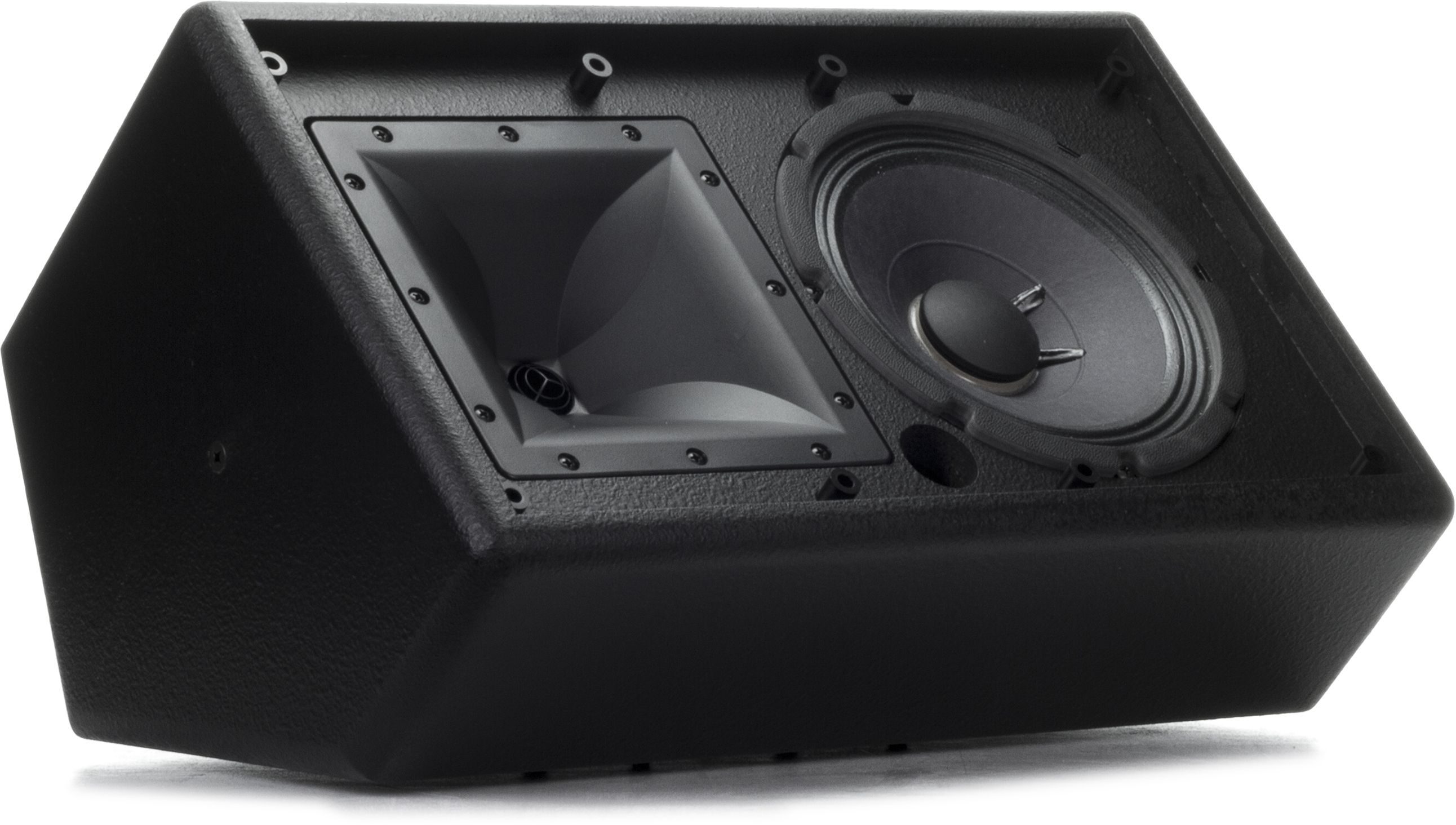

The KI-172-SMA-II is a compact, two-way, high performance loudspeaker with sides slanted at 65° and 45°. Designed to be installed where placement at an angle is required and space is limited, the KI-172-SMA-II is perfect for wall, ceiling or under-balcony mounting in theaters, churches, schools and clubs, or for slanted floor or shelf monitor use near altars and podiums, or in board and meeting rooms.
Color Finish Name
Black

Black

$844.00

Raw Birch

Raw Birch

$909.00

White

White

$909.00

Get to know this product.

The 3/4” MDF enclosure uses dado “lock-joint” and rabbet construction on CNC-fabricated panels to ensure resonance-free response and long-term reliability. The internal high-current passive crossover features the proprietary high-power thermal overload KLIP- circuit, which limits potential damage to the high-frequency driver. Mounting capabilities include top and bottom attachments for the optional SB-102 "U"-shaped bracket.

  • Compact with sides slanted at 65º and 45º
  • Excellent for placement at an angle or tight spaces
  • 8” (20.32cm) woofer and 1” (2.54cm) titanium diaphragm HF compression driver
  • 90º x 90º modified Tractrix® Horn
  • KLIP-circuit HF driver protection devices
  • Top/Bottom attachments for optional Klipsch SB-102 U-shaped bracket

Applications

  • Restaurants
  • Schools
  • Houses of worship
  • Under balcony
  • AV production environments
  • Auditoriums
Useful Documents
Brochure
Product Manual
Specification Sheet
Specifications

General

Frequency Response (+/- 3 dB)74 Hz - 17 kHz (-10 dB @ 48 Hz)
Power Handling200 watts (31V); 800 watts peak
Maximum SPL115 dB Continuous; 121 dB Peak
Sensitivity95 dB
CoverageHorizontal: 90° +/- 30º 2.5 kHz - 20 kHz; Vertical: 90° +/- 20º 2.1 kHz - 20 kHz
Directivity Index (DI)7 dB +/- 1.5 dB 900 Hz - 18 kHz
Directivity Factor (Q)5
Nominal Impedance8 ohms, minimum 4.7 ohms @ 184 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency2 kHz
ComponentsOne K-81-ST 8" woofer; One K-103-TI-KP 1” titanium compression driver on a K-802-M horn
Input ConnectionTwo point barrier strip
Mounting Options4 - 1/4”- 20 for Mounting Bracket; 2 - 1/4”- 20 for SB-102 Bracket
Enclosure Material3/4" MDF
FinishesBlack, White and Raw MDF
AccessoriesSB-102 Mounting Bracket

Misc. Specs

Product Weight (lbs.)27
MPN1062008
RMS Power Handling (Watts)800
ColorBlack
Impedance8 ohms
Depth (in.)10.6
Height (in.)11.5
Width (in.)18.9
