Klipsch® Professional Black KI-362-SMA-II Trapezoidal 15" 3-Way Loudspeaker

Model #: KI-362-SMA-II-Black

$2,194.00

At a Glance

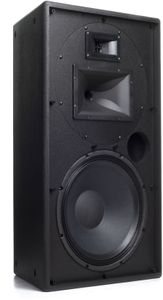

The KI-362-SMA-II three-way trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) loudspeaker is a value-engineered compact Tractrix® Horn-loaded system capable of superior performance in both permanent installation and production environments including theaters, auditoriums, music clubs, houses of worship, and A/V production environments.

WarningProposition 65 Warning for California Residents
Klipsch® Professional Black KI-362-SMA-II Trapezoidal 15" 3-Way Loudspeaker

General Specs

Product Weight (lbs.)70
MPN1062024
RMS Power Handling (Watts)1600
ColorBlack
Impedance8 ohms
Depth (in.)16
Height (in.)34.3
Width (in.)19.8

General

Frequency Response54 Hz - 20 kHz (-10 dB @ 38 Hz)
Power Handling400 watts (42V); 1600 watts peak
Maximum SPL124 dB Continuous; 130 dB Peak
Sensitivity101 dB
CoverageHorizontal: 90° +/- 30º 400 Hz - 16 kHz; Vertical: 60° +/- 20º 2.8 kHz - 20 kHz
Directivity Index (DI)8 dB +/- 2 dB 500 Hz - 20 kHz
Directivity Factor (Q)6.3
Nominal Impedance8 Ohms, minimum 4.4 Ohms @ 106 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency1.26 kHz and 6.8 kHz
ComponentsOne K-48-ST 15" woofer; One K-53-TI 1.5” titanium compression driver on a K-703-M horn; One K-100-TI 1” titanium compression driver on a K-79-T horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints
Bracket MountOne attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material3/4" 7-ply birch plywood cabinet; 1” MDF motorboard
Height34.3” (87.12cm)
Width19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth16” (40.64cm)
Weight70 lbs. (31.81kg)
FinishesBlack, White and Raw Birch

Klipsch® Professional Black KI-362-SMA-II Trapezoidal 15" 3-Way Loudspeaker

Model #: KI-362-SMA-II-Black
876927
Model #: KI-362-SMA-II-Black
Klipsch
$2,194.00

$2,194.00

At a Glance

The KI-362-SMA-II three-way trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) loudspeaker is a value-engineered compact Tractrix® Horn-loaded system capable of superior performance in both permanent installation and production environments including theaters, auditoriums, music clubs, houses of worship, and A/V production environments.

Get to know this product.

To permit use at any mounting angle the KI-362-SMA-II’s midrange and high-frequency drivers are adjustable in 45° increments allowing 60° or 90° projection patterns to be chosen independent of the vertical horizontal or lateral orientation of the enclosure.

Compact 22.5º symmetrical trapezoidal design

User-rotatable midrange and HF module for optimized pattern control

16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility

15” cast frame heavy-duty woofer

1.5” and 1” titanium midrange and high-frequency compression drivers

Internal high current full-range crossover

KLIP circuit Mid and HF driver protection device

Available in Black, White or Raw Birch finish

Applications

A/V Production Environments

Auditoriums and Houses of Worship

Bars and Music Clubs

Small/medium Sports Facilities

Theme Parks and Leisure Venues

Transportation Facilities

Specifications

General Specs

Product Weight (lbs.)70
MPN1062024
RMS Power Handling (Watts)1600
ColorBlack
Impedance8 ohms
Depth (in.)16
Height (in.)34.3
Width (in.)19.8

General

Frequency Response54 Hz - 20 kHz (-10 dB @ 38 Hz)
Power Handling400 watts (42V); 1600 watts peak
Maximum SPL124 dB Continuous; 130 dB Peak
Sensitivity101 dB
CoverageHorizontal: 90° +/- 30º 400 Hz - 16 kHz; Vertical: 60° +/- 20º 2.8 kHz - 20 kHz
Directivity Index (DI)8 dB +/- 2 dB 500 Hz - 20 kHz
Directivity Factor (Q)6.3
Nominal Impedance8 Ohms, minimum 4.4 Ohms @ 106 Hz
Overload ProtectionKLIP Overload Protection Circuit-HF
Crossover Frequency1.26 kHz and 6.8 kHz
ComponentsOne K-48-ST 15" woofer; One K-53-TI 1.5” titanium compression driver on a K-703-M horn; One K-100-TI 1” titanium compression driver on a K-79-T horn
Input ConnectionTwo point barrier strip
Mounting OptionsSixteen 3/8”-16 flypoints
Bracket MountOne attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material3/4" 7-ply birch plywood cabinet; 1” MDF motorboard
Height34.3” (87.12cm)
Width19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth16” (40.64cm)
Weight70 lbs. (31.81kg)
FinishesBlack, White and Raw Birch
