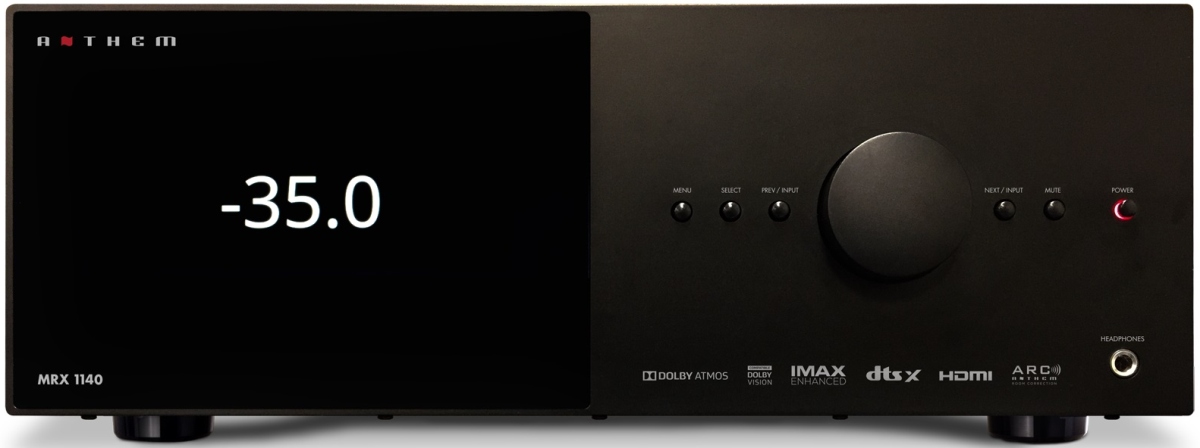

Anthem® MRX 1140 Performance Black 15.2 Channel A/V Receiver

The MRX 540, 740 and 1140 are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 HDMI inputs and 2 outputs, plus eARC. Ultra HD signals are passed through unaltered up to 18.2 Gbps with Dolby Vision, HDR and Hybrid Log Gamma support.

Features Include:

• New Electronics platform, up to 15.2 pre-amplifier channels with 11 amplifier channels, HDMI 2.0b HDCP 2.2, hardware upgradeable to HDMI 2.1 (8K)
• On select models (MRX 1140, AVM 90 and AVM 70), object-oriented audio codecs have been updated to the latest version of DTS:X Pro.
• All object-oriented audio codecs have been updated to the latest version of DTS:X and Dolby Atmos.
• IMAX Enhanced
• ARC Genesis now features a more precise microphone, ensuring better results in any listening environment.
• Platform Agnostic Streaming with AirPlay2, Google Chromecast (Audio), Bluetooth v4.2, and Spotify Connect and Roon
• Reliable Networking Platform with web-based setup and over-the-air updates
• Next-Generation DSP Platform
• Modernized Design with high resolution front panel display
• Amp matrixing with up to 10 re-assignable channels
• Two Independent sub outputs on MRX 1140, allow ARC Genesis to correct multiple subs individually for frequency response and phase alignment.
• Independent HDMI Zone 2 output.

Audio Features:

• 15.2 pre-amplifier channels with 11 amplifier channels. 140 watts per channel continuous power into 8 ohms.
• Amp matrixing with up to 10 re-assignable channels
• Two independent subwoofer outputs
• Auto Subwoofer Phase Adjustments (ARC Genesis)
• Auto Subwoofer Polarity Adjustments (ARC Genesis)
• Latest Implementation of ARC Genesis
• Four Speaker Profile Memories
• 2” / 5 cm Speaker Distance Increments
• 0.5dB Level Increments
• Super Sub Front Setting

Additional Features:

• Anthem Web User Interface
• Advanced Load Monitoring (ALM)
• 30 Input Configurations
• Input trim adjustments
• Power-on Input Assignment
• Auto Power Off
• Eco Mode (standby)
• Over-the-air Network updates
• USB updates
• Beta updates (over-the-air)
• Backlit Remote Control
• Toroidal Transformer

Channel Re-Assignment

MRX Series Receiver channels can be assigned in many ways. Unused amplifier channels can be re-assigned to Bi-Amplify demanding front speakers, power surrounds, presence speakers, or a second zone (Available on MRX 1140 and MRX 740).

Configure amplifier channels for your system's needs, then perfect the presentation with ARC Genesis.

Robust Integration

The Anthem MRX 1140 features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices.

Design

At Anthem, we have one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Center and their decades of combined experience.
